From the Architects:
Completed in November 2015, Kericho Cathedral is located in Kenya, approximately 250km North-West of Nairobi. It lies within the Highlands, west of the Great Rift Valley, enjoying magnificent views across tea plantations and surrounding hills. The Diocese was established in 1995 with a growing congregation and is led by the Most Reverend Bishop Emmanuel Okombo.

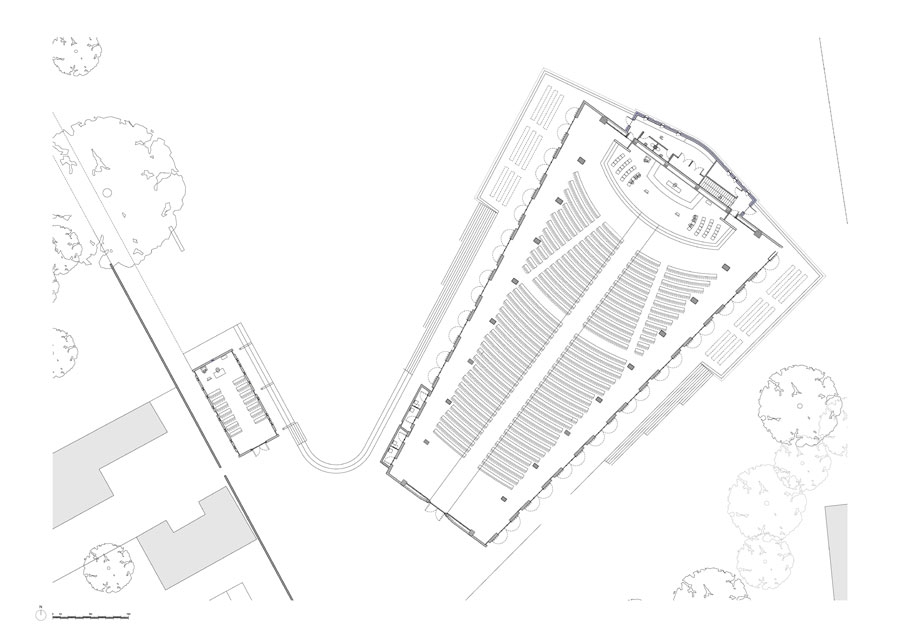

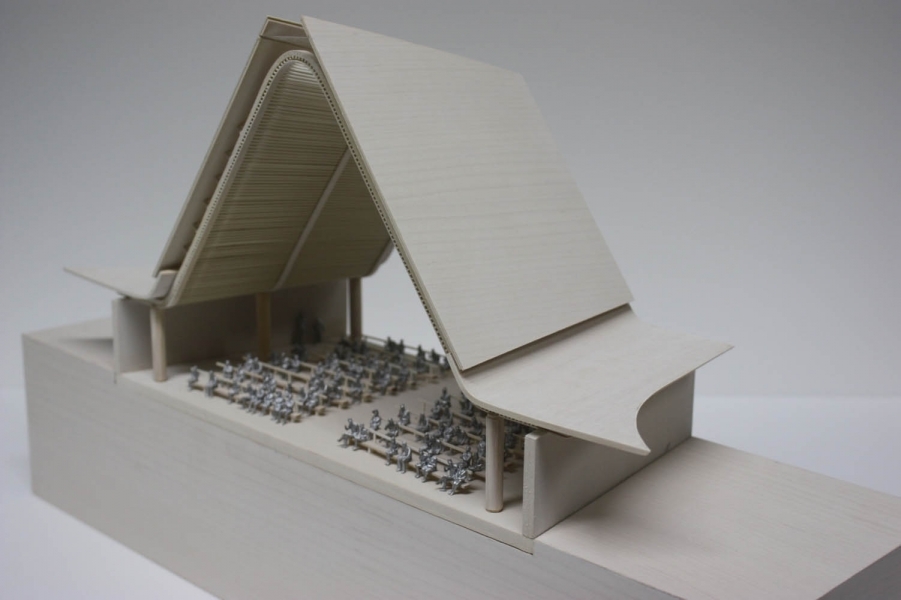

The Cathedral’s design creates a unique and sacred place for a congregation of 1,250 seated celebrants participating in the liturgy of the Roman Catholic Mass under one giant unifying roof. The strikingly inclined roof and its ascending interior volume - over 1,375 square metres in size - are the key characteristics behind its design. Bishop Emmanuel was particularly concerned to widen the nave as it approaches the altar to maximise the congregation’s engagement with the celebration of the Mass and its climax, the Act of Communion.

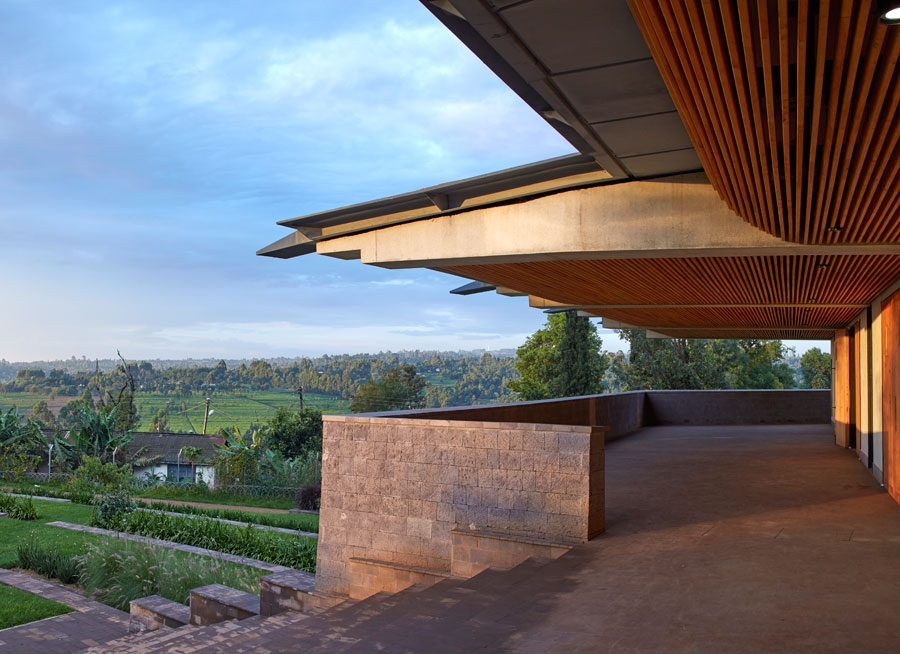

It opens completely along both transepts to promote natural ventilation and allow the congregation to leave the building at multiple points and expand onto the landscaped terraces and gardens. The aspiration was to create a structure that integrated seamlessly with its landscape setting, in both aesthetic and functional terms. The Cathedral’s tiled-roof is now a distinctive form in the rolling panorama of Kericho’s hills and valleys.

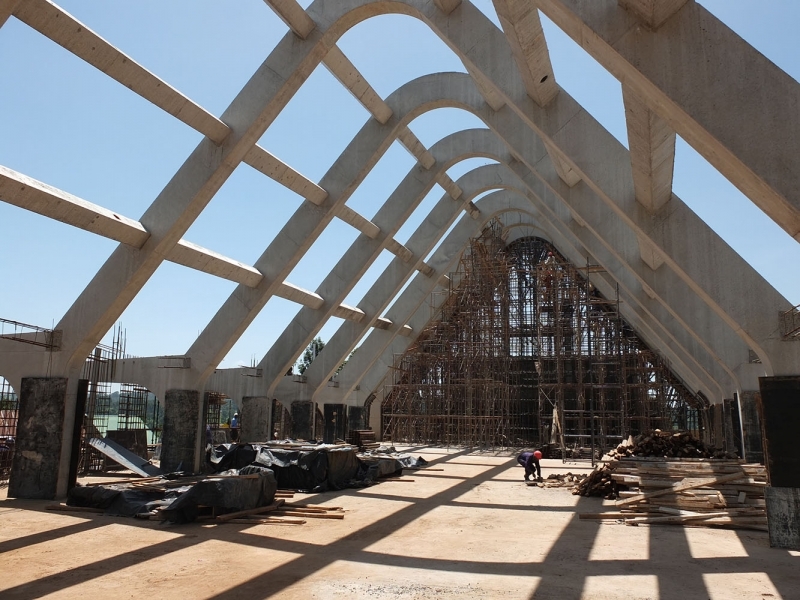

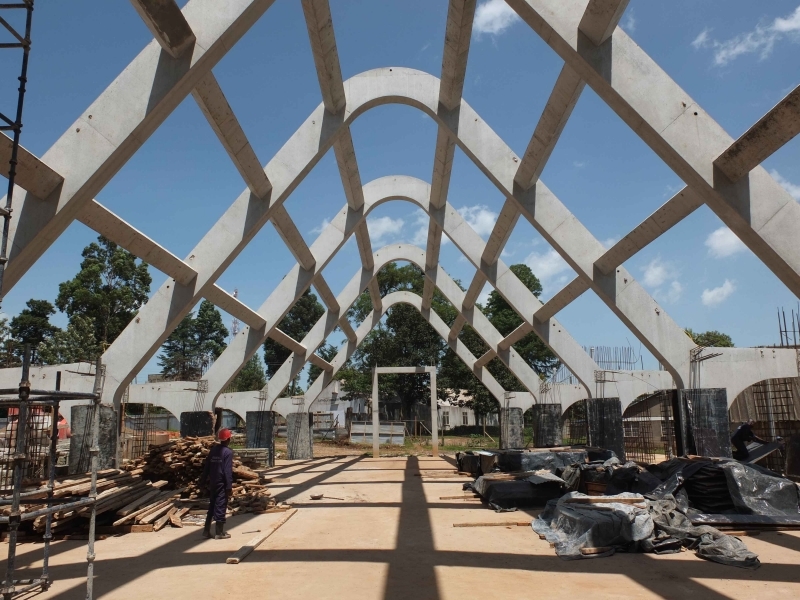

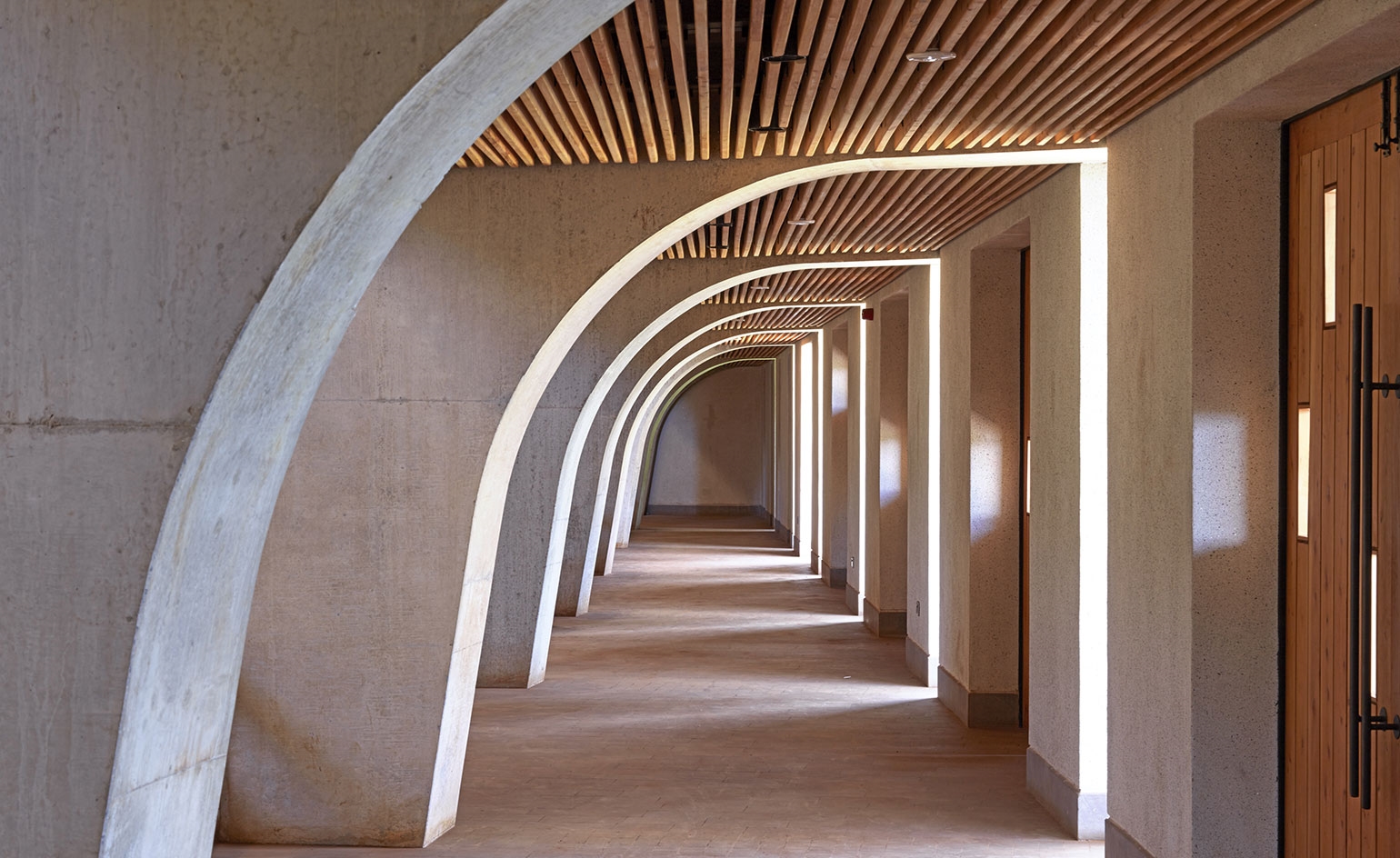

The architectural challenge has been to ensure Kericho Cathedral embodied the Catholic liturgy and embraced its local congregation in a way that serves the Faith and the special qualities of its location and community. We believe our response is distinctive and universally welcoming. The ascending vaulted volume contained under a vast roof fuses African and ecclesiastically historic references. Care has been taken to shape the Cathedral’s space and express the building’s structure - the stone plinth, simply articulated, arched concrete frames and timber-ribbed vaulting are exposed in a strikingly crafted and honest manner.

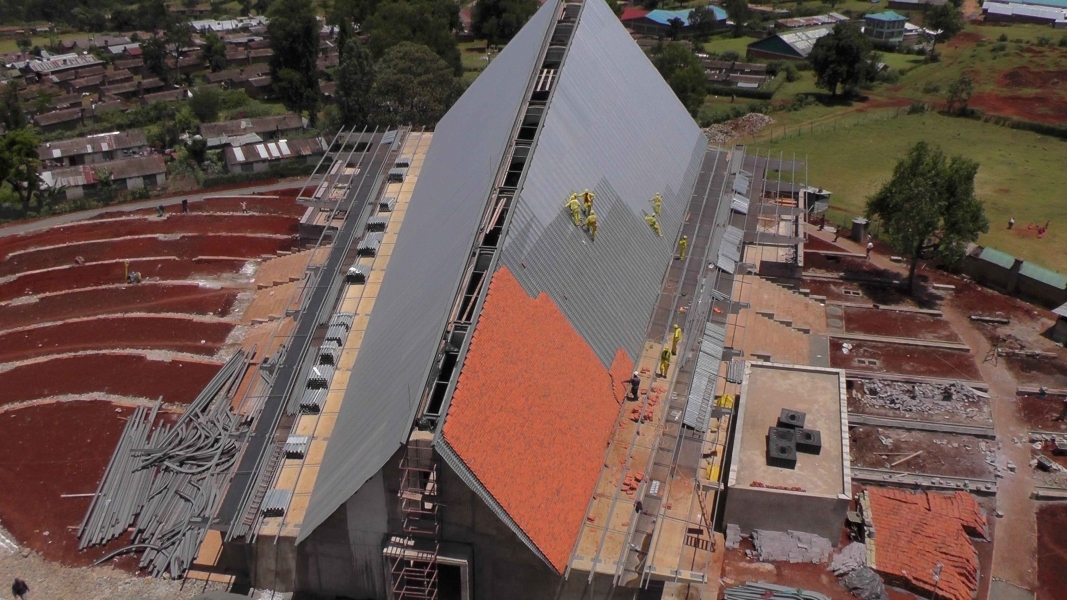

The building’s simple palette of natural materials honours the Faith and frugality of this rural African community. The practice has been committed to the involvement of skilled artisan trades and the improvement of local skills throughout the construction period. With the exception of the glass sheets used by the stained-glass artist, all the materials, including the Cypress timber (grown in Kericho), which was used for the ceiling, doors and furniture, and the clay tiles in the roof, were locally resourced and fabricated.

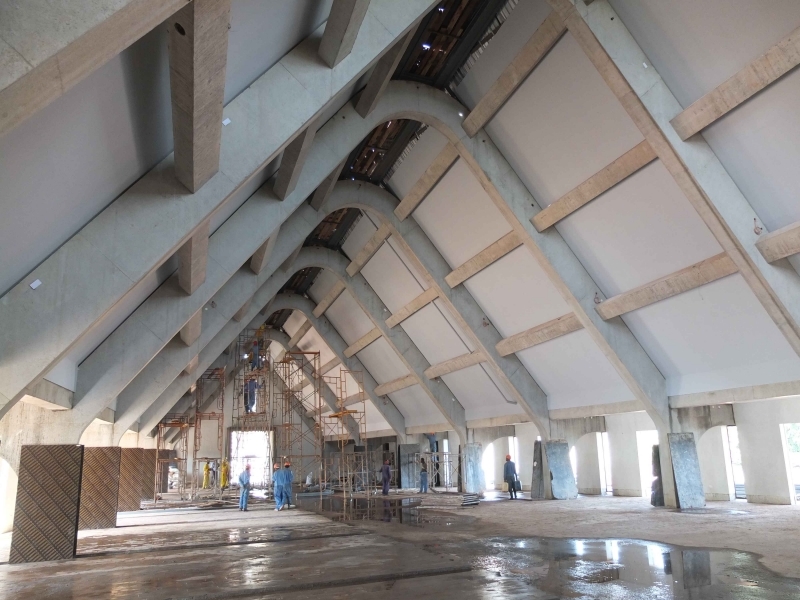

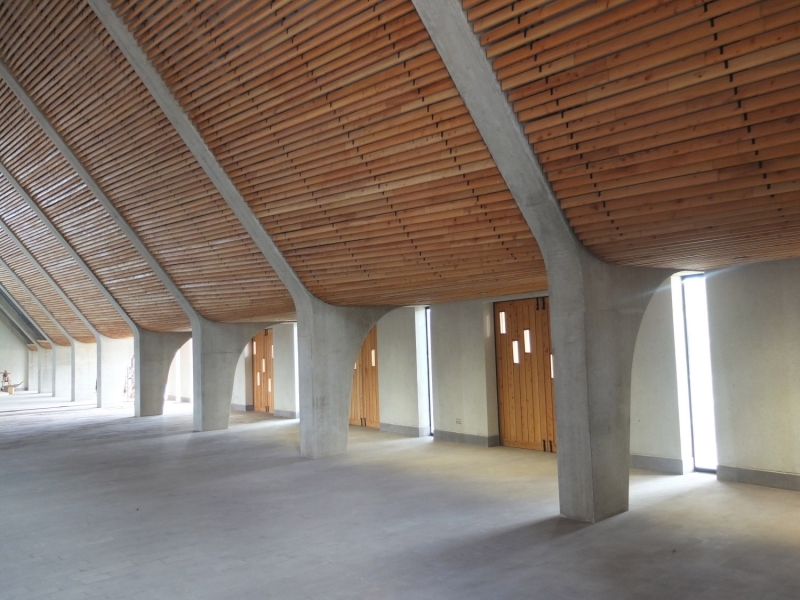

The ceiling was constructed from finger-jointed Cypress timber slats, designed to accommodate the high range of humidity of the local environment. The granite used for the sanctuary was sourced from Kenya, and the soap stone used for the statues was sourced from the town of Kisii, located south of Kericho.

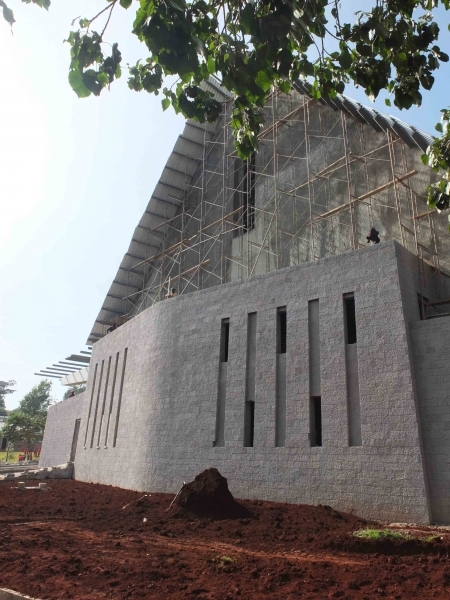

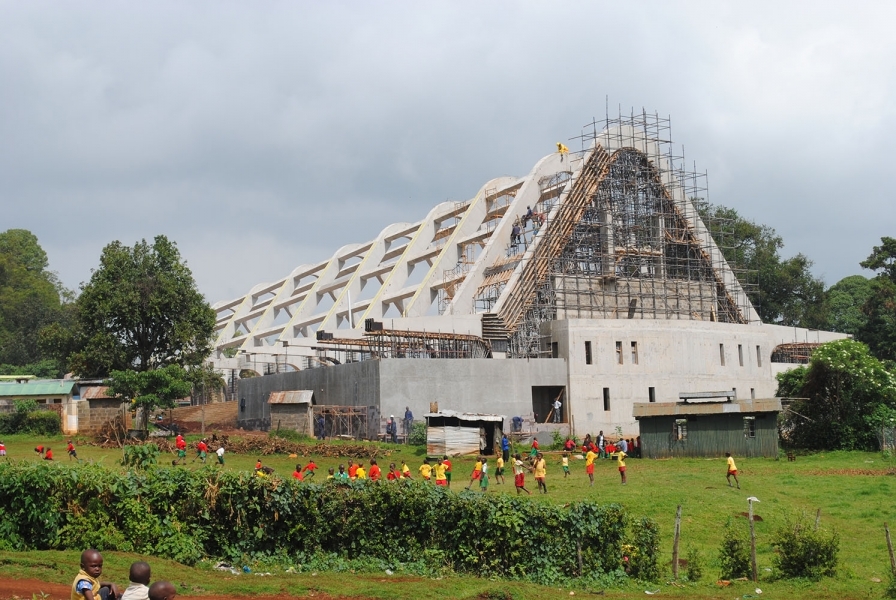

The flooring was laid from the machine-cut Nairobi Blue stone. The complex geometry of the building was accommodated by an in-situ construction method specific to Kenya. The size of each structural frame required a complex pouring system for the concrete. The building's cladding material was carefully selected as washed terrazzo, known for its self-cleaning attributes and was applied by hand. The Nairobi blue stone cladding of the podium were hand-dressed and fixed by local masons. Buildability and the use of available local resources were key drivers for Kericho Cathedral.

The project is designed to operate with modest energy, using natural daylight and few maintenance requirements. Its major impact in sustainability terms is therefore the materials with which it has been constructed, and the way they have been procured and managed through the construction process. Another key driver was to minimise energy use, and consequently, reduce the future maintenance cost and obligations. Sustainability: The Cathedral’s giant roof and volume have been carefully engineered with assistance from ARUP to create a naturally ventilated and acoustically moderating environment for all seasons. The average precipitation in the Kericho County area is around 1800 mm per year, and this considerable volume of water can accumulate very quickly with sudden and prolonged bursts of rain.

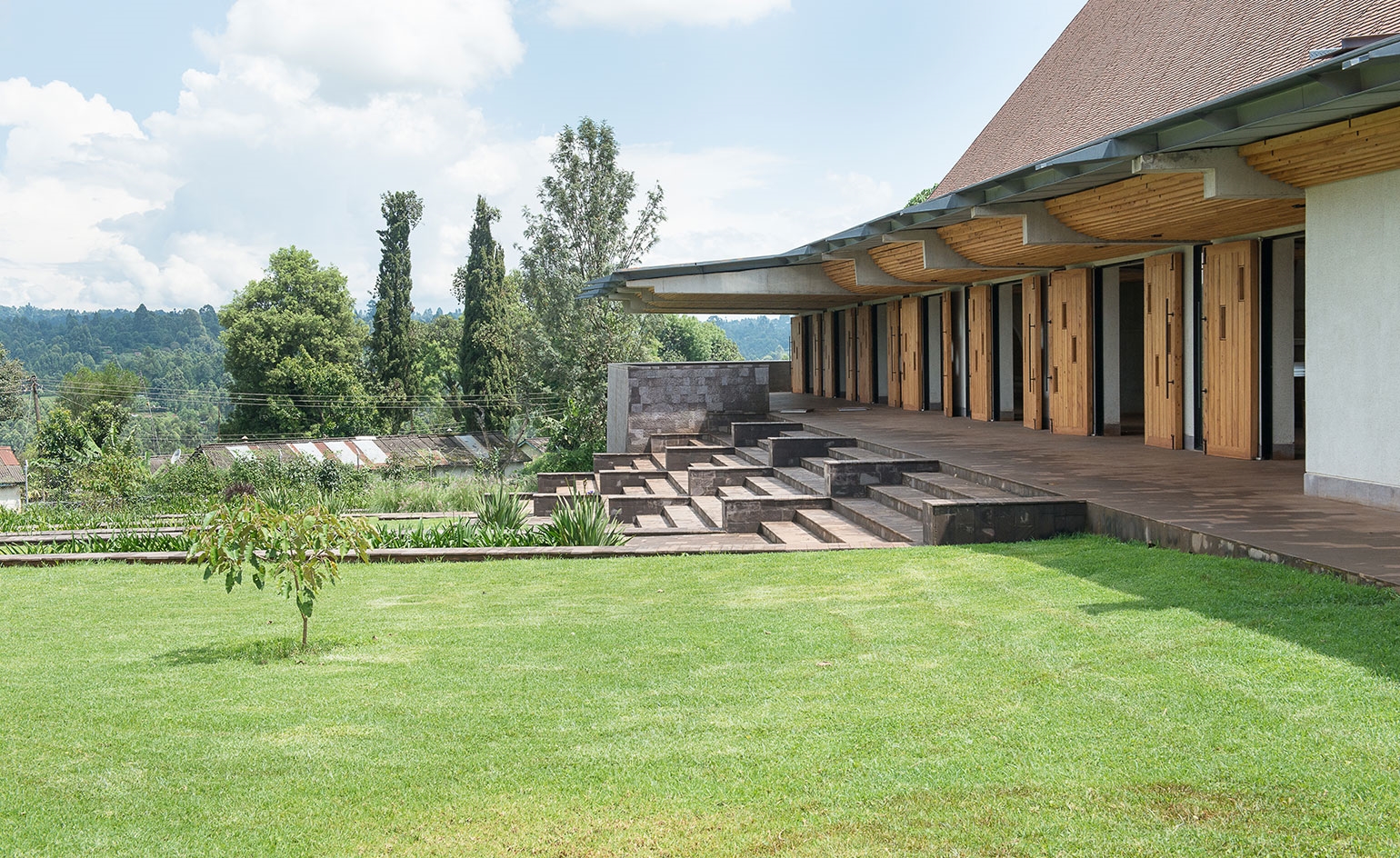

The landscaping – with terracing, drainage channels and soakaways – is specifically designed to mitigate this potential problem. At times of high rainfall, water can be collected from hard standing areas and the roof and stored below ground, subsequently released into the landscape at a controlled rate. The terraces form part of the storm water drainage system, directing water into the joints between the stone channels. The capture and storage of precipitation is used in drier times as a source of irrigation water. Artificial lighting is kept to a minimum in order to keep energy consumption as low as is practical.

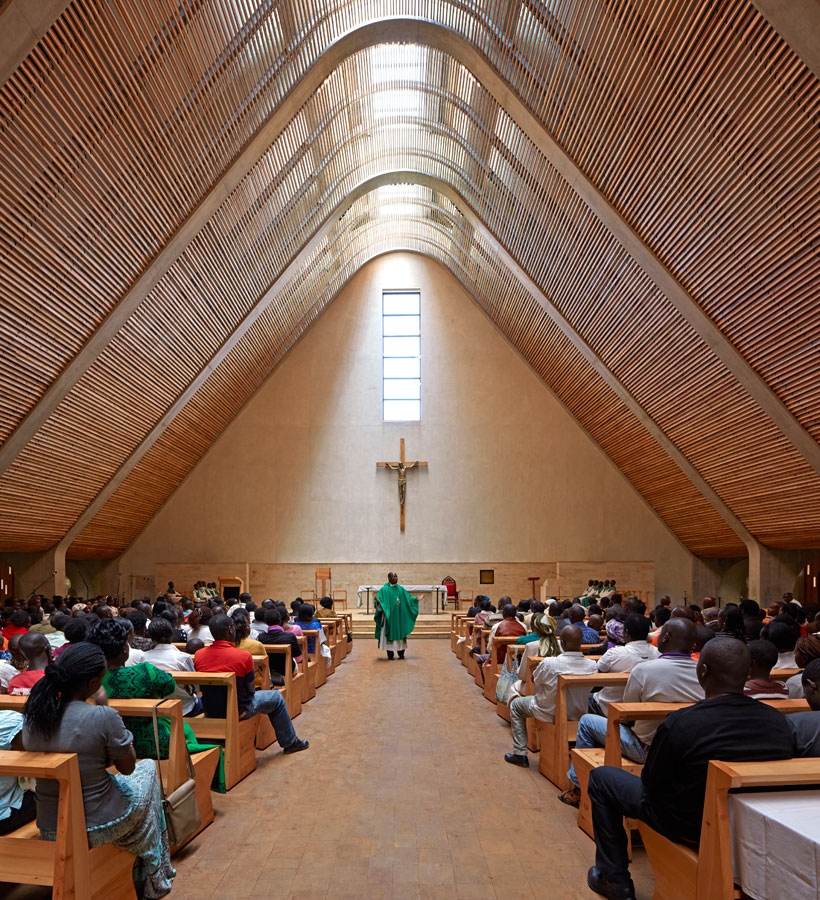

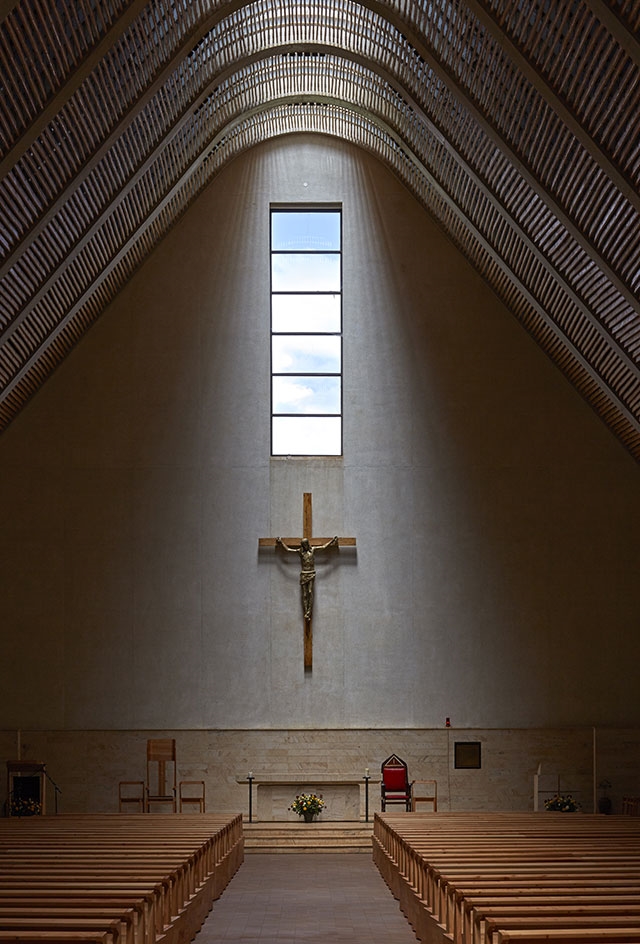

A line of glass along the roof’s spine provides illumination overhead, which at certain times of day creates striking patterns in the aisle and near the altar from direct sunlight. A coating applied to the roof-light reduces solar transmission to around 50%. In addition, doorways through the seismic stability walls along the base provide diffuse light from the sides. Designing for the changeable local climate was essential in order to adopt a natural heating/cooling/ventilation strategy. Having adapted the design in this way, moving parts and associated maintenance and replacement requirements were eliminated.

A key design objective was to create a naturally ventilated building without heating or cooling, with the aim of achieving a low energy, more sustainable building. The climate in Kericho is reasonably benign and therefore the idea of a completely passive building with no heating or cooling was realistic. By keeping the roof vent permanently open, a reasonable compromise was reached between avoid over-heating in hot weather and over-cooling in cold weather.

Strikingly crafted, the building's simple palette of materials honours the faith and frugality of this rural African context.

• • •
