From The Architect
The brief from the client required the design of a home for a family of four in a Bushveld Estate. The site is a bushveld plot of 1 hectare, and is situated in the Roodeplaat Dam catchment area and required a sensitive approach to the siting of the building. The building is carefully placed as pavilions between the existing thorn trees. The four pavilions for living, sleeping, services and guests are linked to form a combined living unit. Pavilions form courtyards for living in the bush between them.

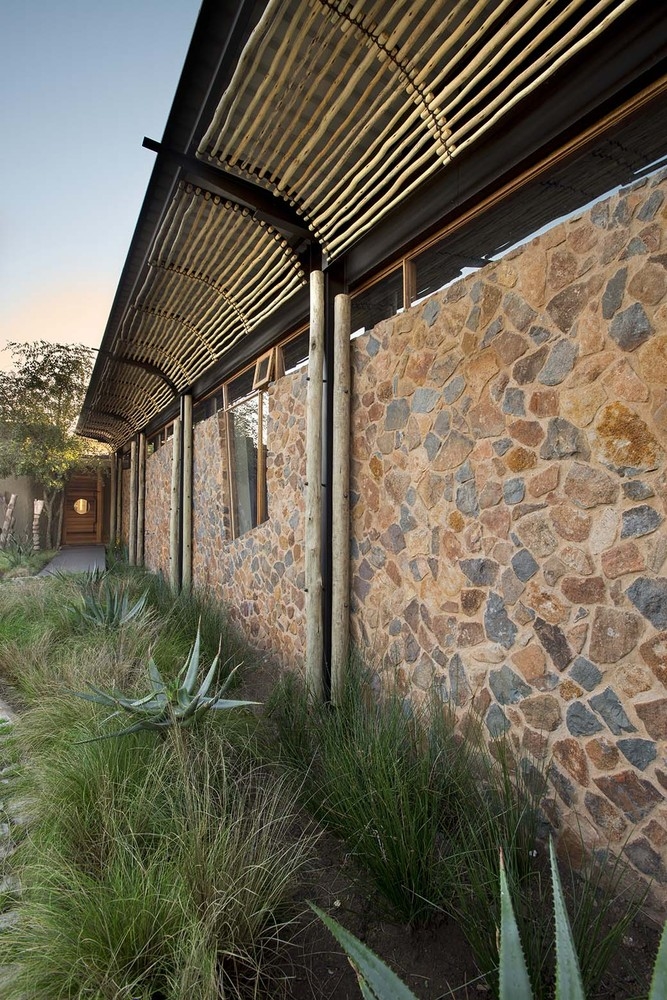

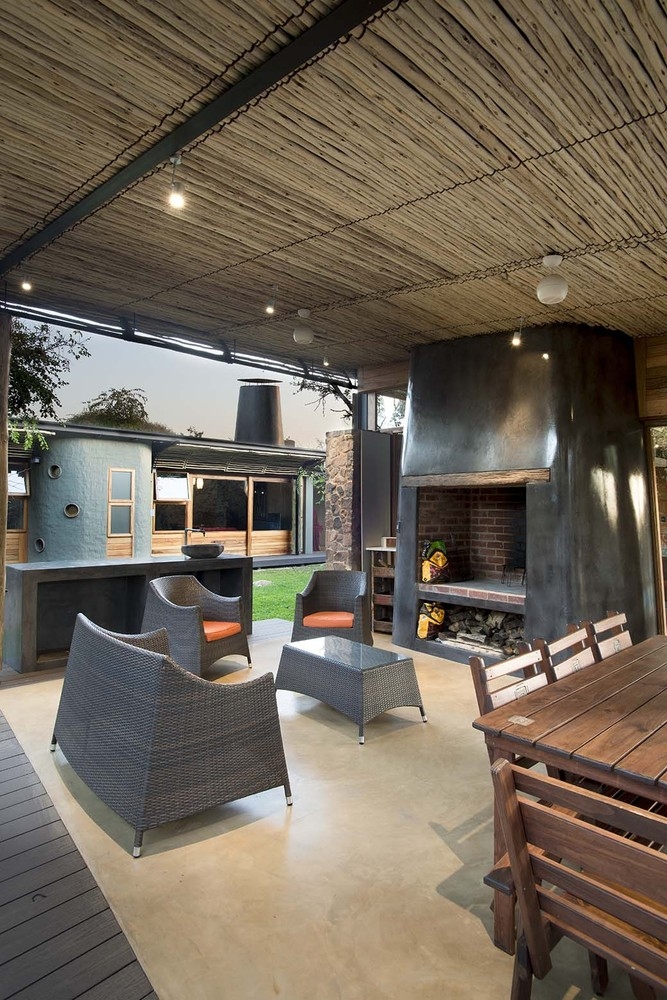

The house consists of three conceptual elements: The roof and ceiling emulates the horizontal plane of the acacia thorn trees providing shade for its inhabitants. Secondly The 2 “anthill like” fireplaces are beacons in the landscape, and thirdly the jagged edge stonewall elements emulates the klip kopje of the landscapes.

The roof height is kept to the minimum to create homely spaces as well as to ensure a low visual impact on the natural environment. The basic structure is of the building is a steel shed with infill timber windows and masonry walls under the shed. A timber lathe ceiling is suspended from the steel structure to form a highly insulated roof cavity to avoid summer over heating and winter heat loss.

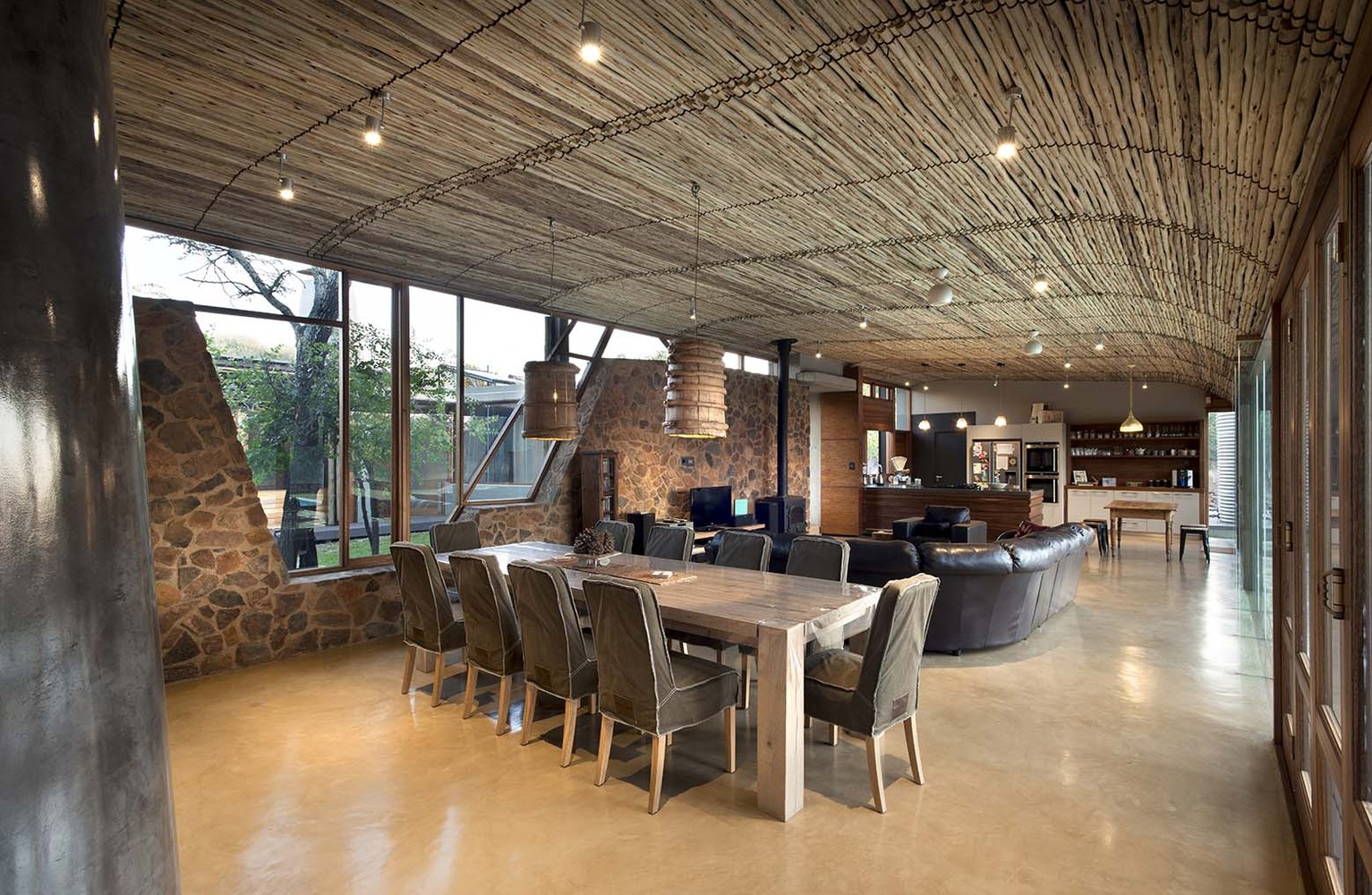

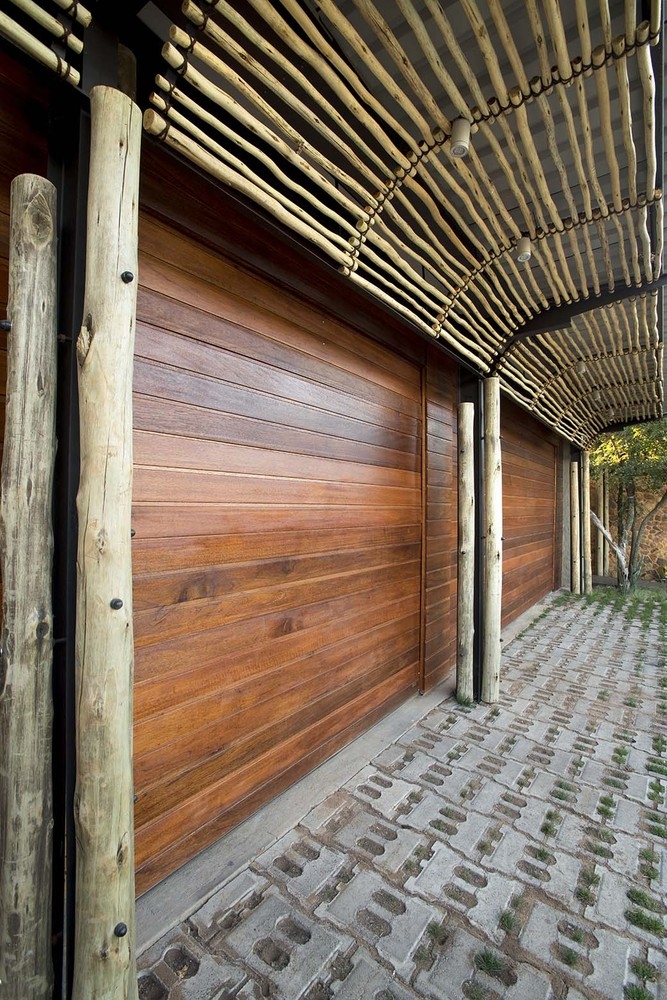

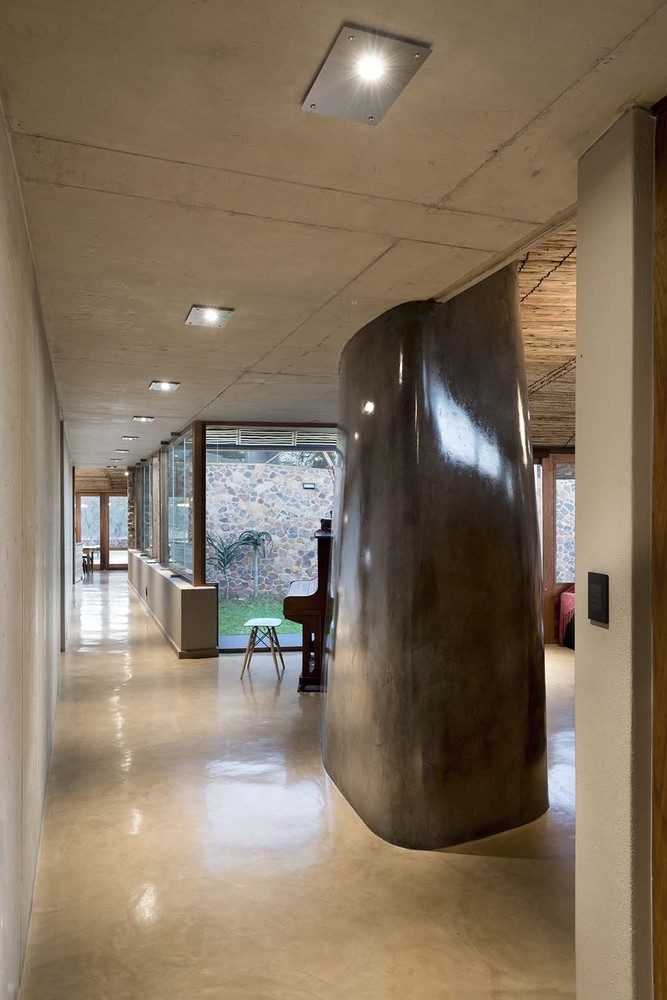

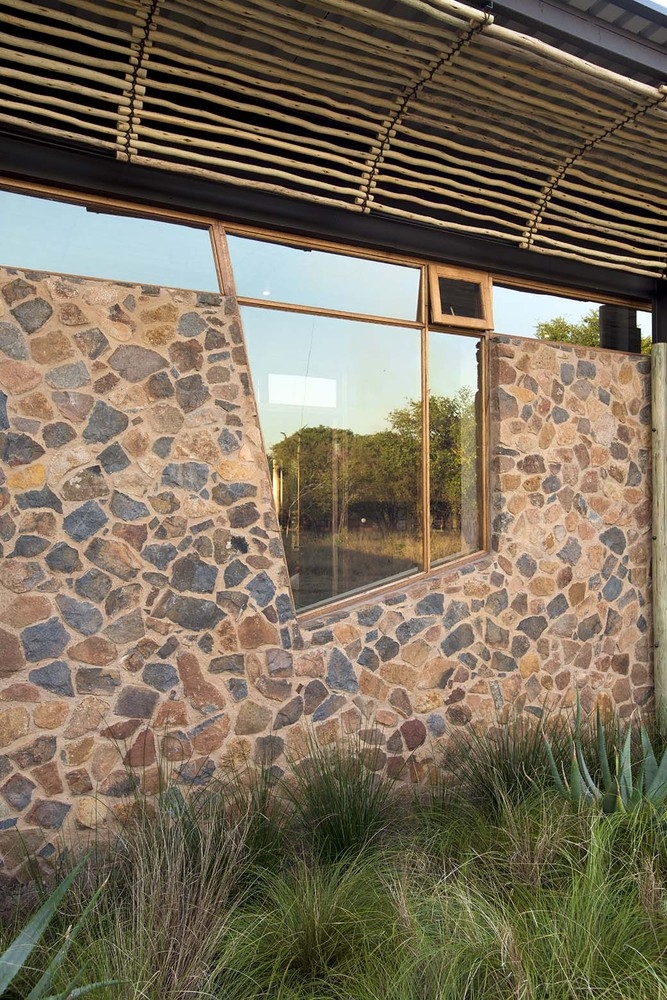

The masonry walls were placed under the roof structure surface after it was erected and are free form shapes. In between these wall elements the spaces are filled in with timber and glass, which frame views into the landscape. The interior finishes of the building are kept to the minimum with lathes ceilings, timber doors and windows and concrete floors.

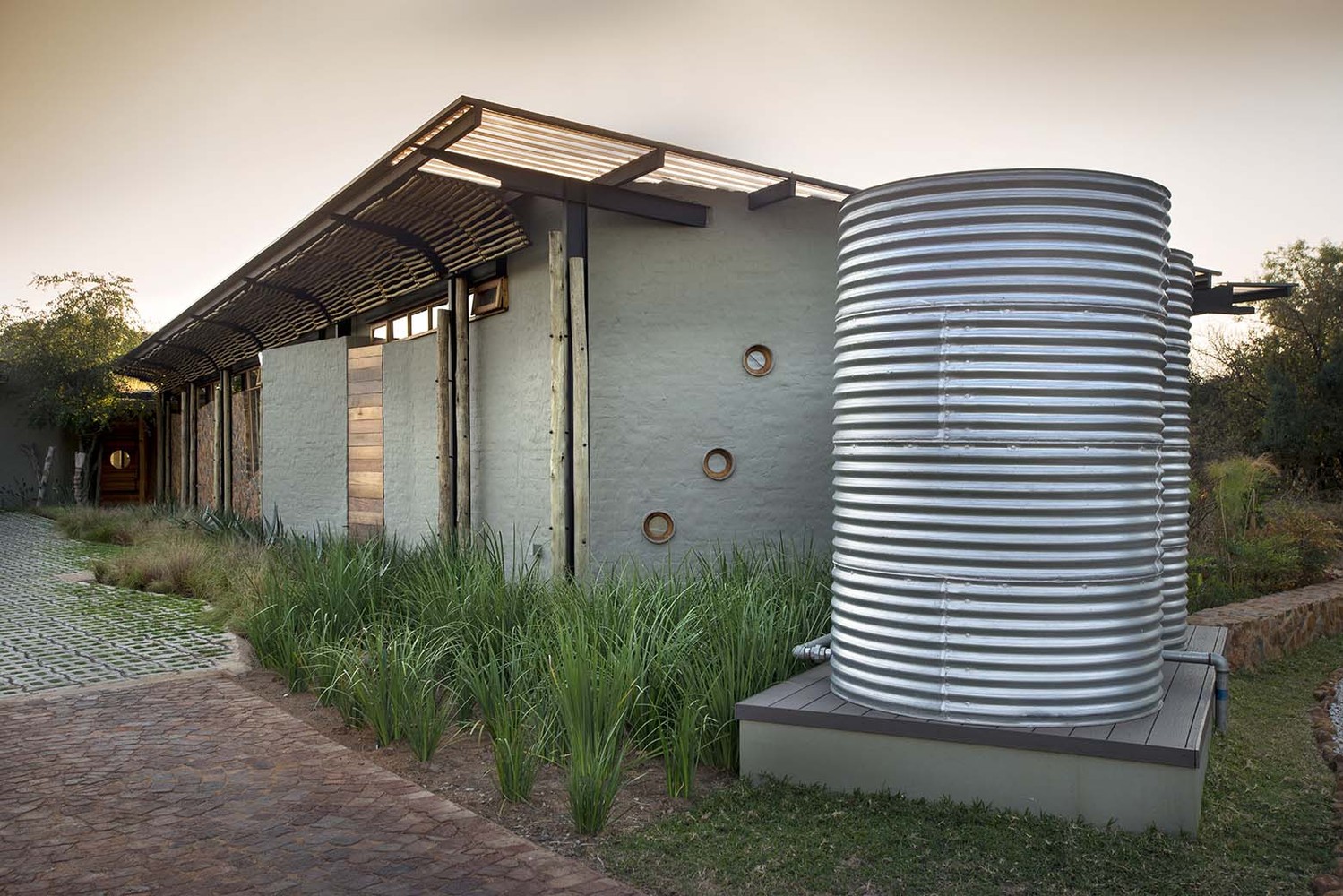

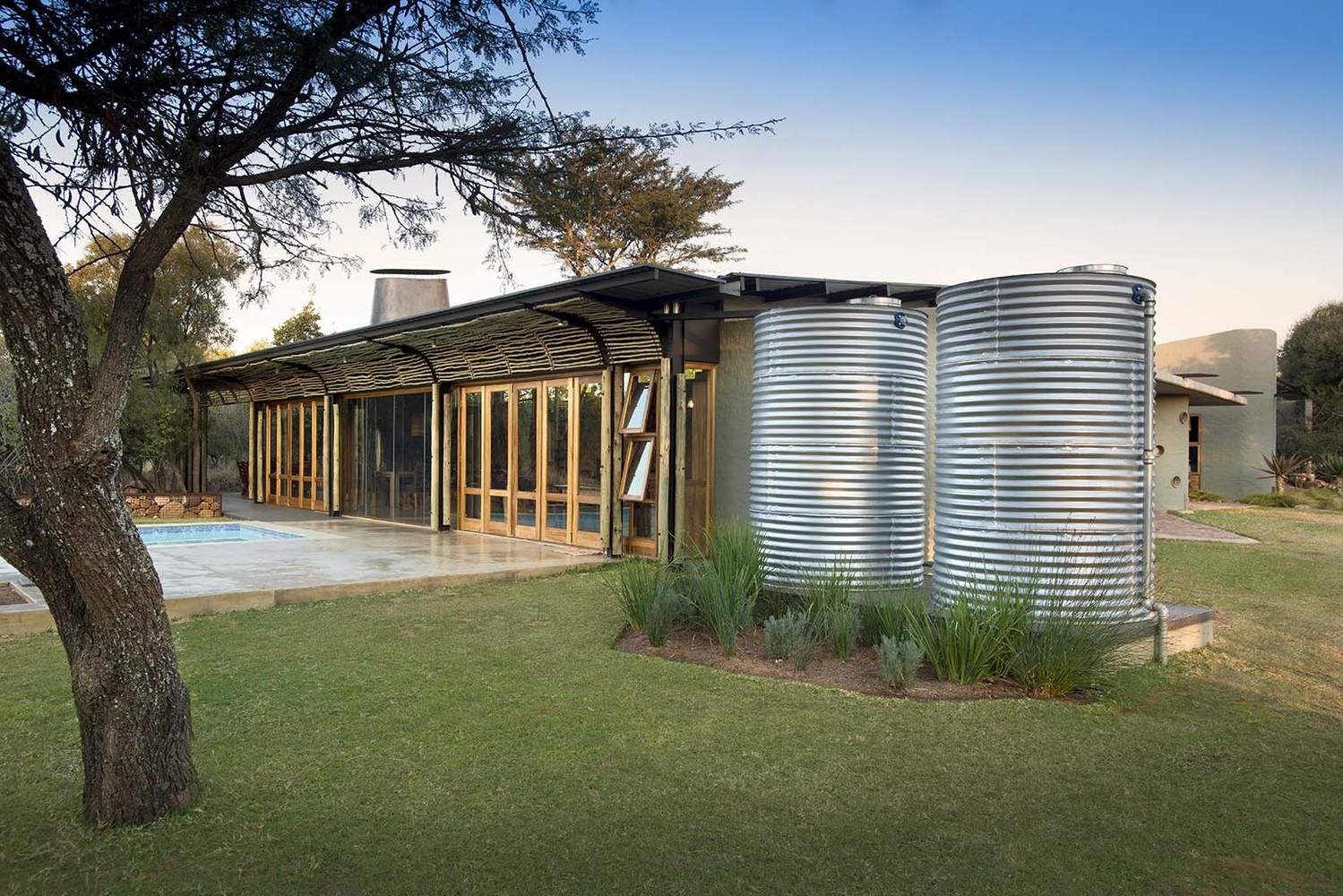

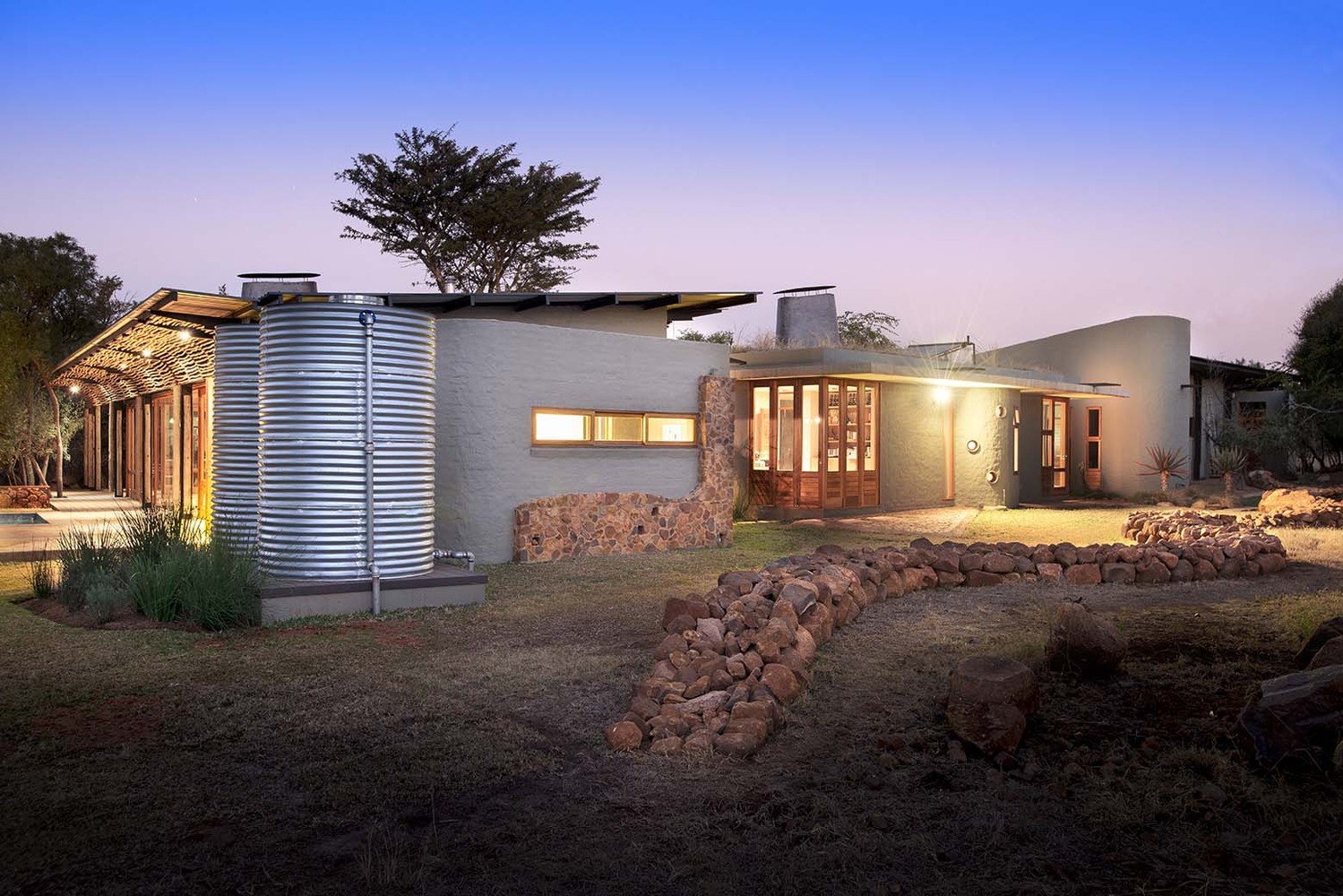

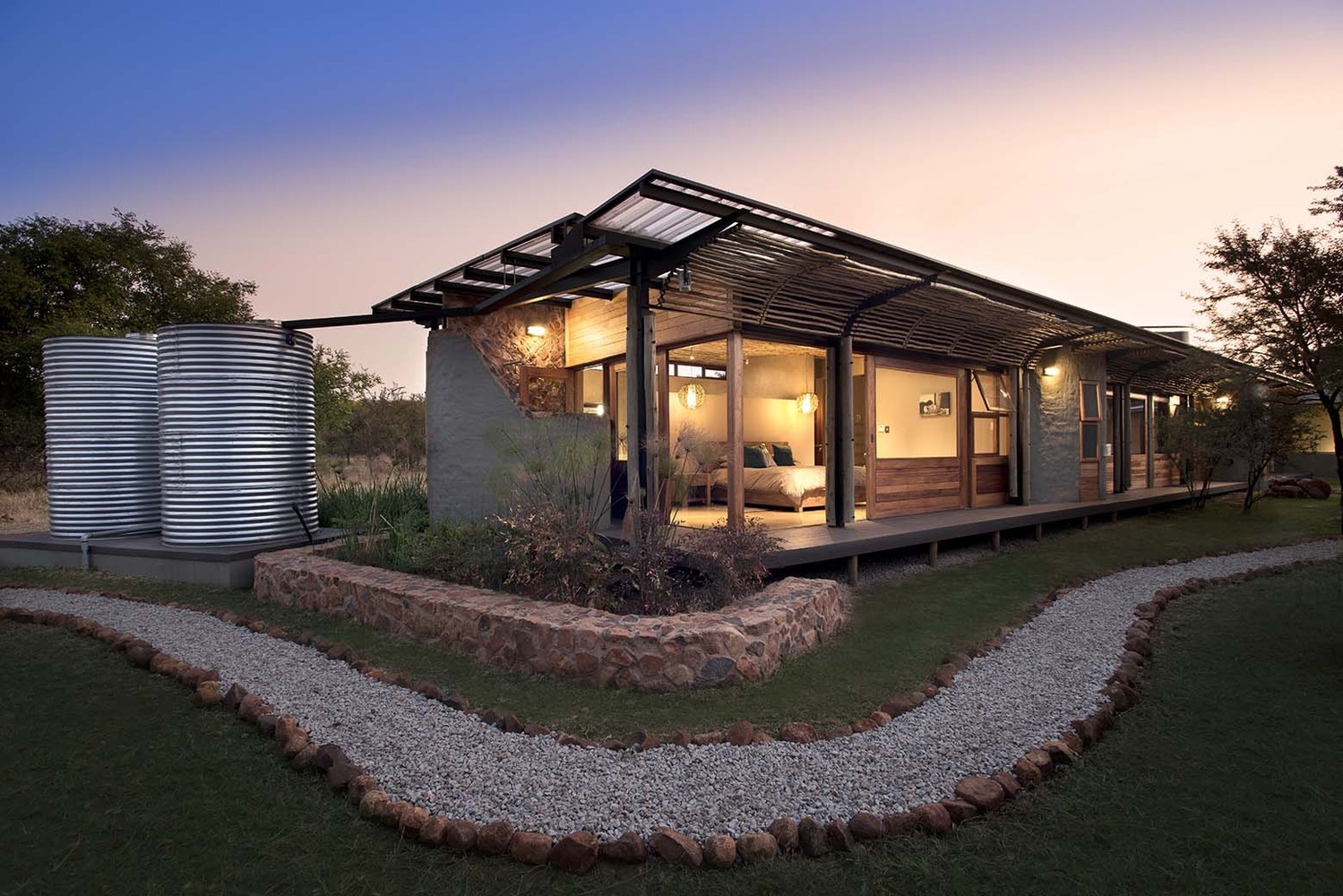

A number of sustainable strategies were employed in the design and include an effective shading of glass surfaces, highly insulated roof above the legal requirements, Solar Hot Water heating systems, Planted roofs, Water harvesting systems integrated into the landscape irrigation system and emerging water supply system and Energy efficient glazing.

Finally, the building design in essence attempts to be sensitive to the pristine bushveld landscape, and at the same to create a warm home for it its dwellers without opulence.

• • •

    © House Mouton_Earthworld Architects 03

  • •

    © House Mouton_Earthworld Architects 04

  • •

    © House Mouton_Earthworld Architects 05

• • •

    © House Mouton_Earthworld Architects 06

  • •

    © House Mouton_Earthworld Architects 01

  • •

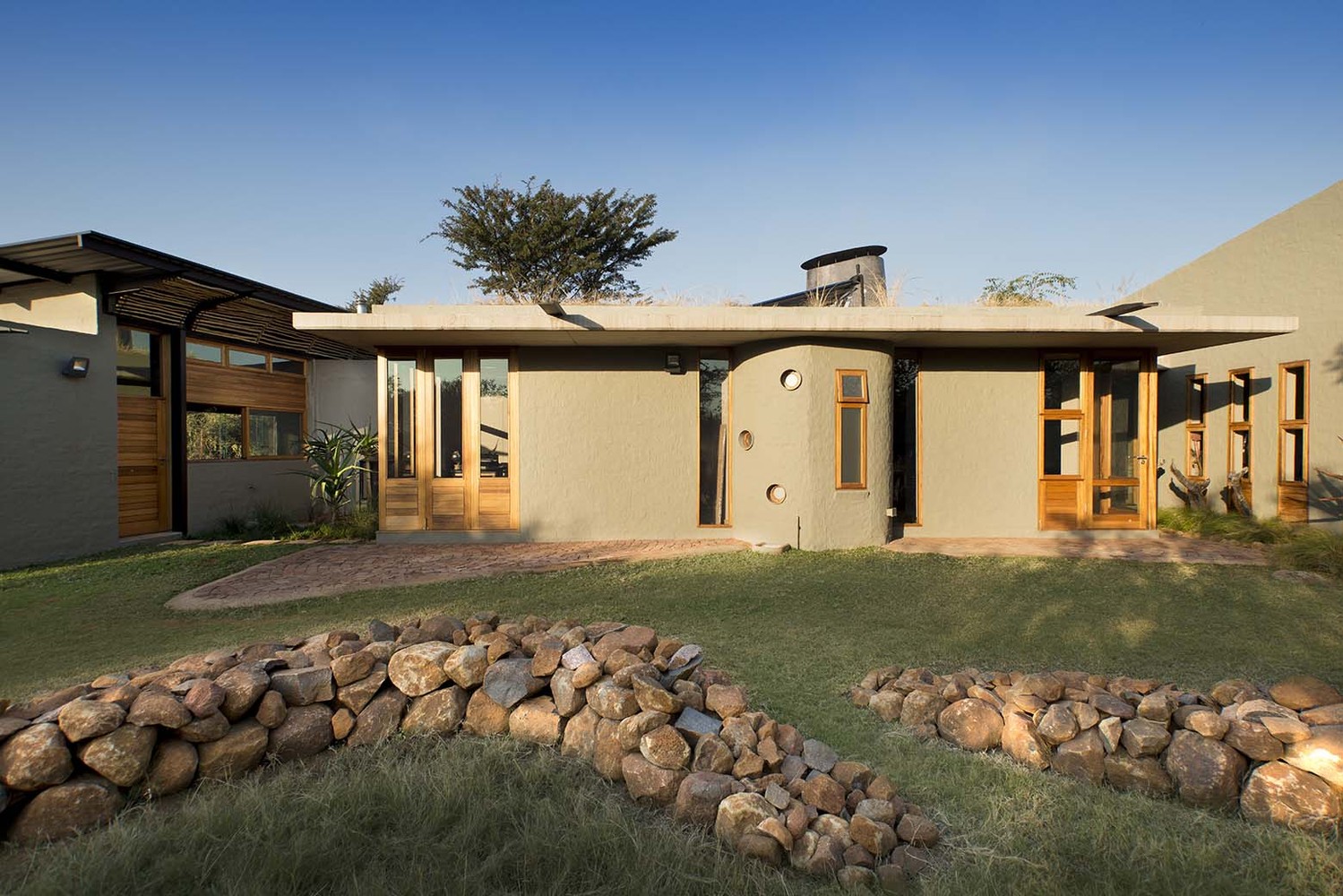

    © House Mouton_Earthworld Architects 07

• • •

    © House Mouton_Earthworld Architects 10

  • •

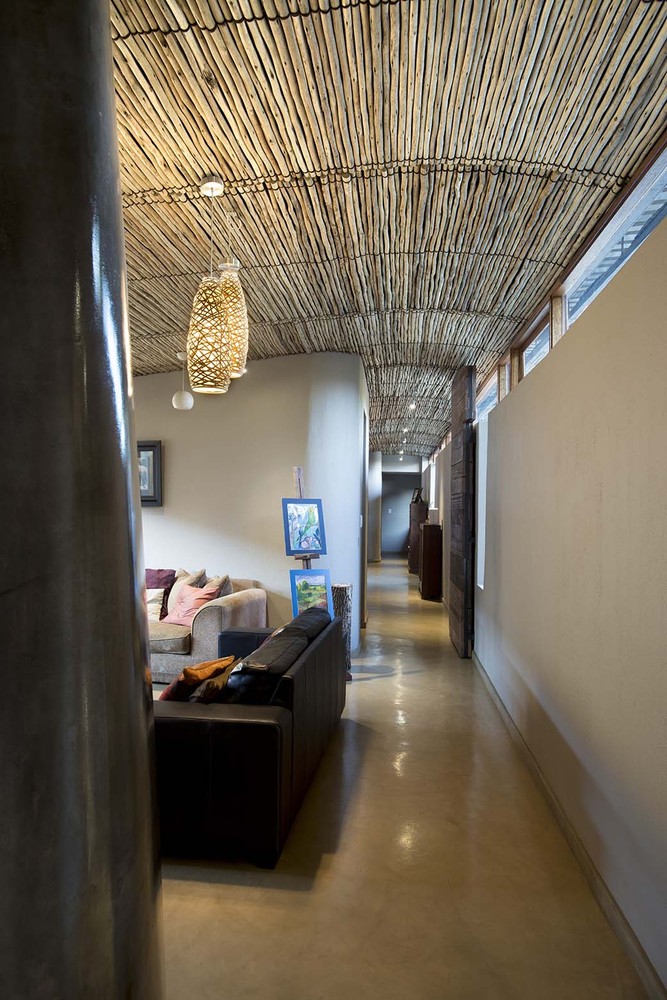

    © House Mouton_Earthworld Architects 11

  • •

    © House Mouton_Earthworld Architects 08

• • •

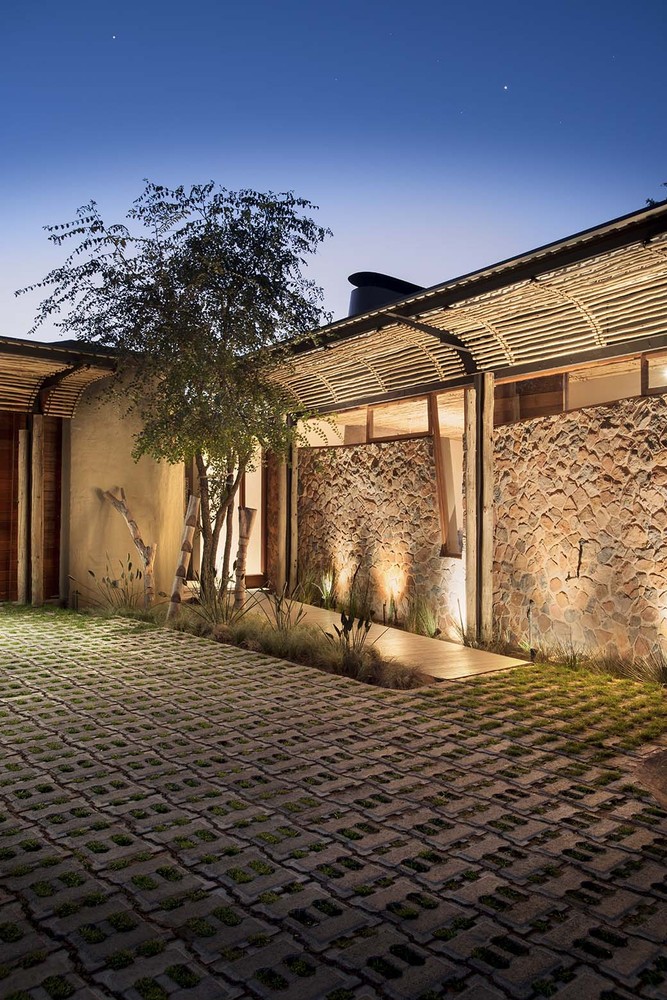

    © House Mouton_Earthworld Architects 12

  • •

    © House Mouton_Earthworld Architects 13

  • •

    © House Mouton_Earthworld Architects 16

• • •

    © House Mouton_Earthworld Architects 17

  • •

    © House Mouton_Earthworld Architects 14

  • •

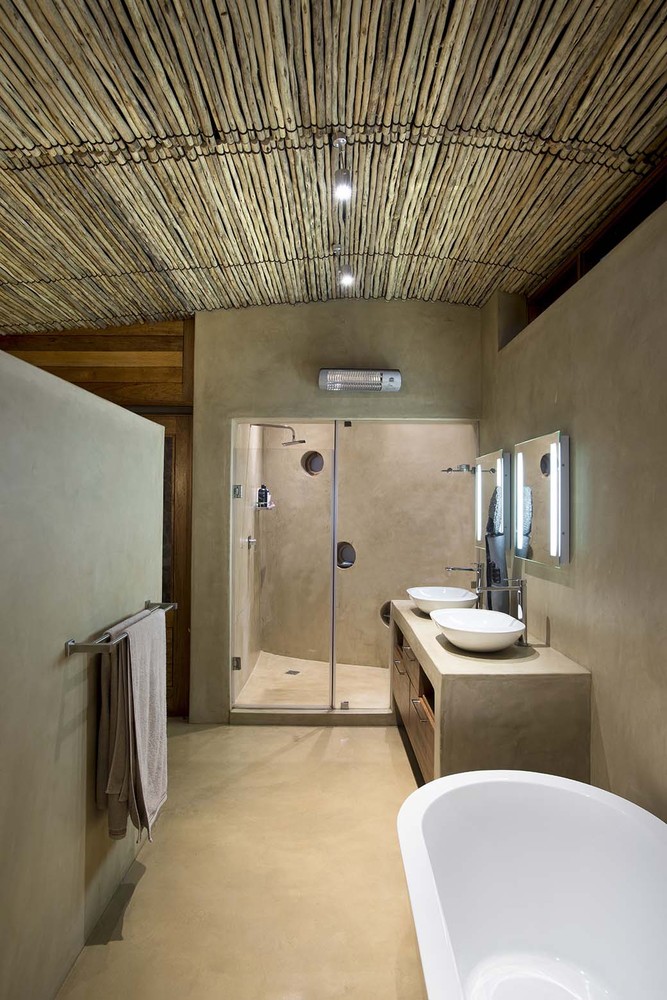

    © House Mouton_Earthworld Architects 18

• • •

    © House Mouton_Earthworld Architects 20

  • •

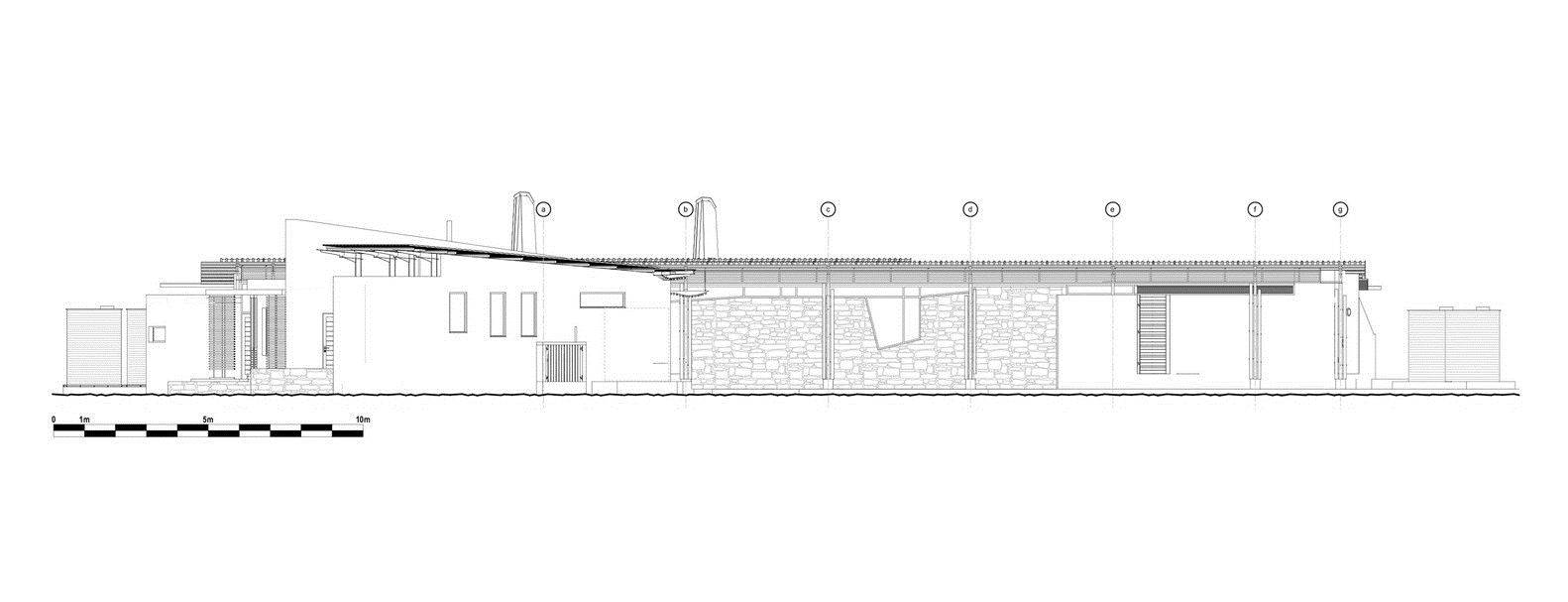

    © House Mouton_Earthworld Architects Elevation 02

  • •

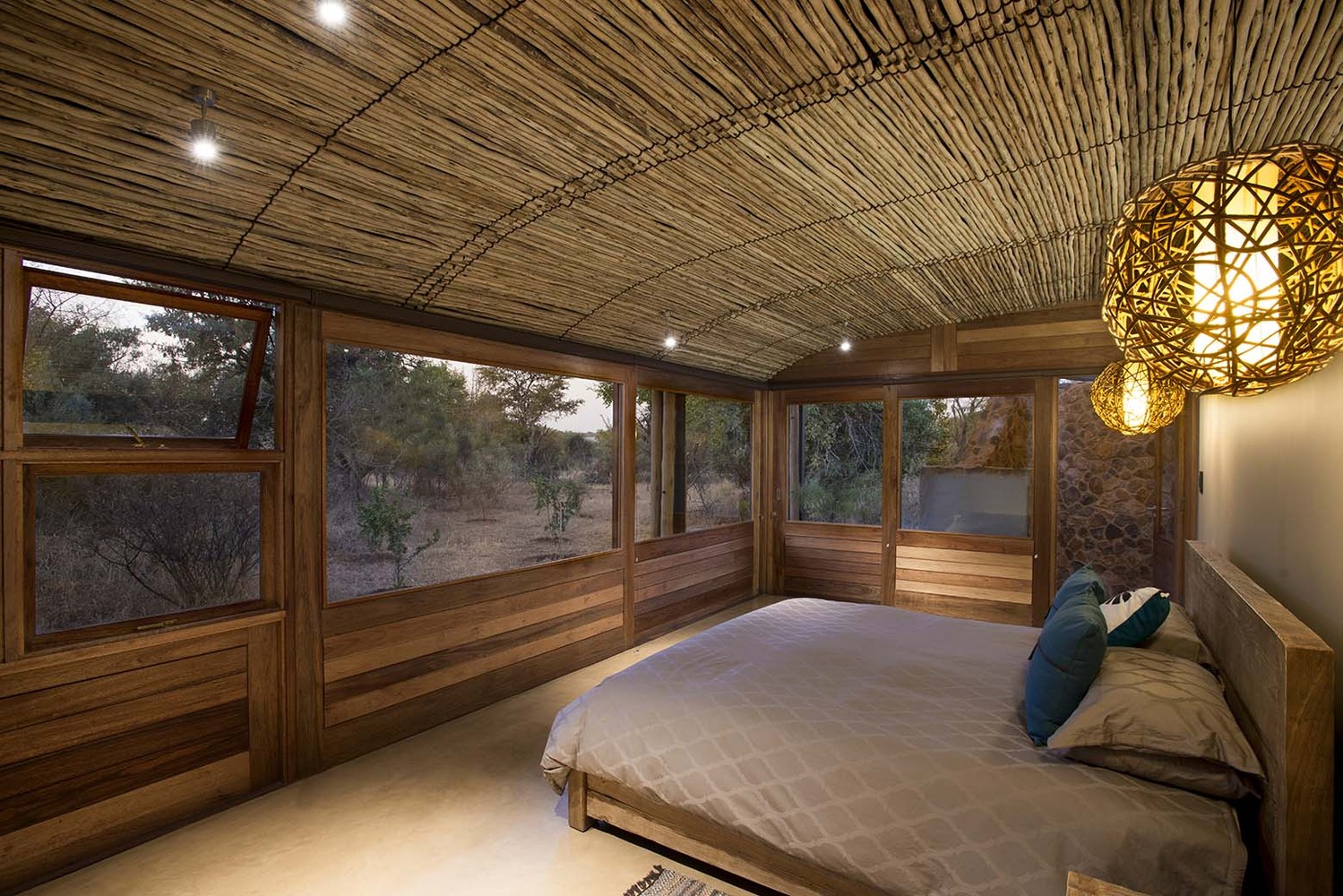

    © House Mouton_Earthworld Architects 15

• • •

    © House Mouton_Earthworld Architects 23

  • •

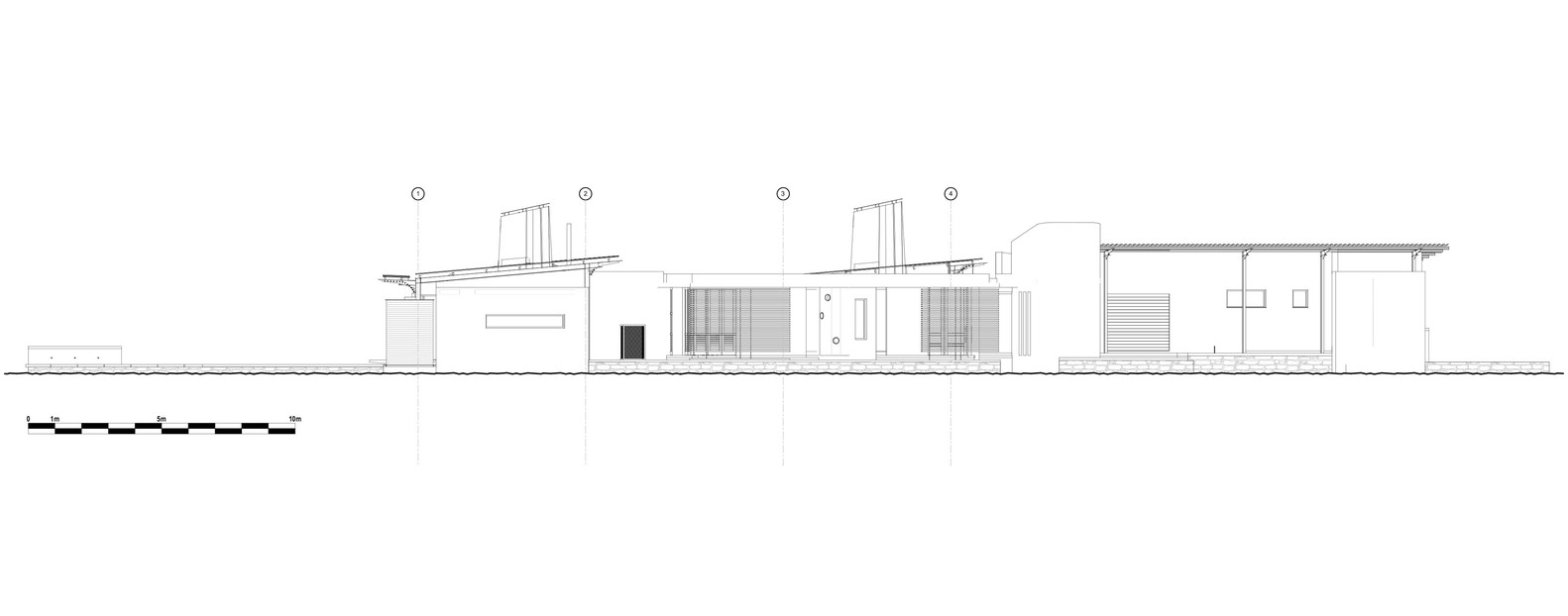

    © House Mouton_Earthworld Architects Elevation 03

  • •

    © House Mouton_Earthworld Architects 21

• • •

    © House Mouton_Earthworld Architects 19

  • •

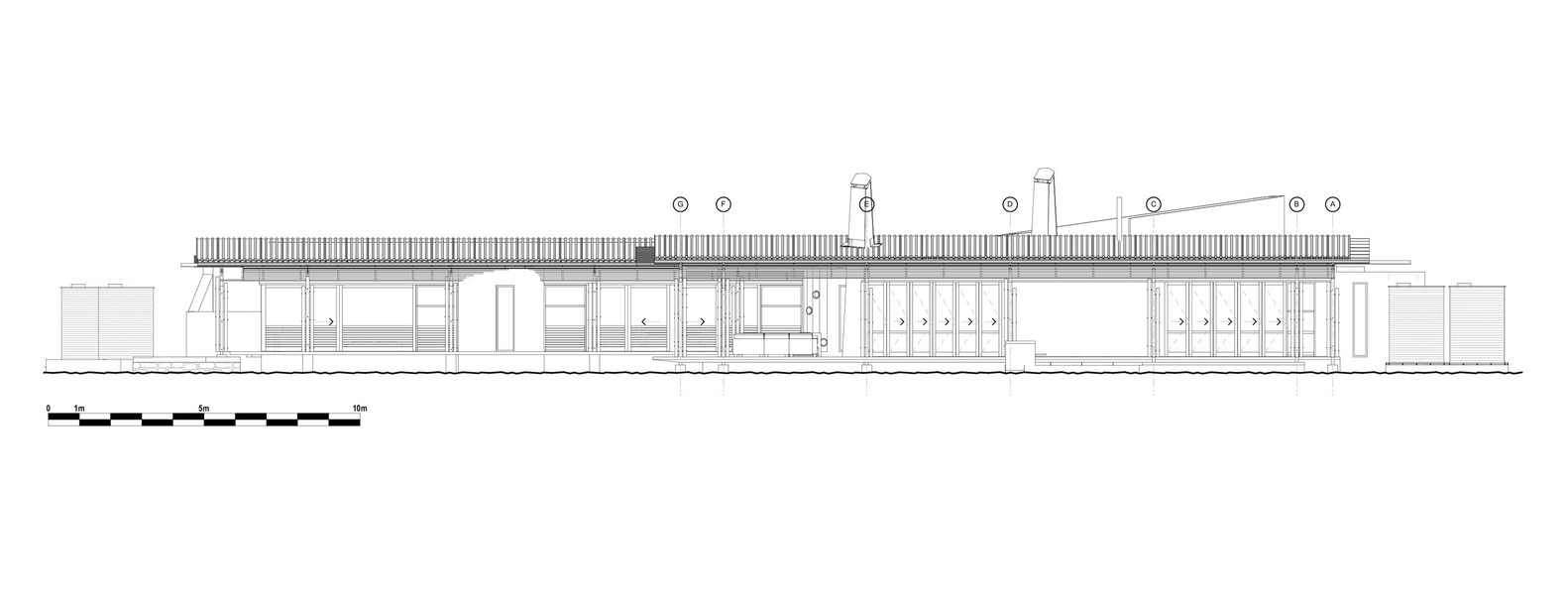

    © House Mouton_Earthworld Architects Elevation

  • •

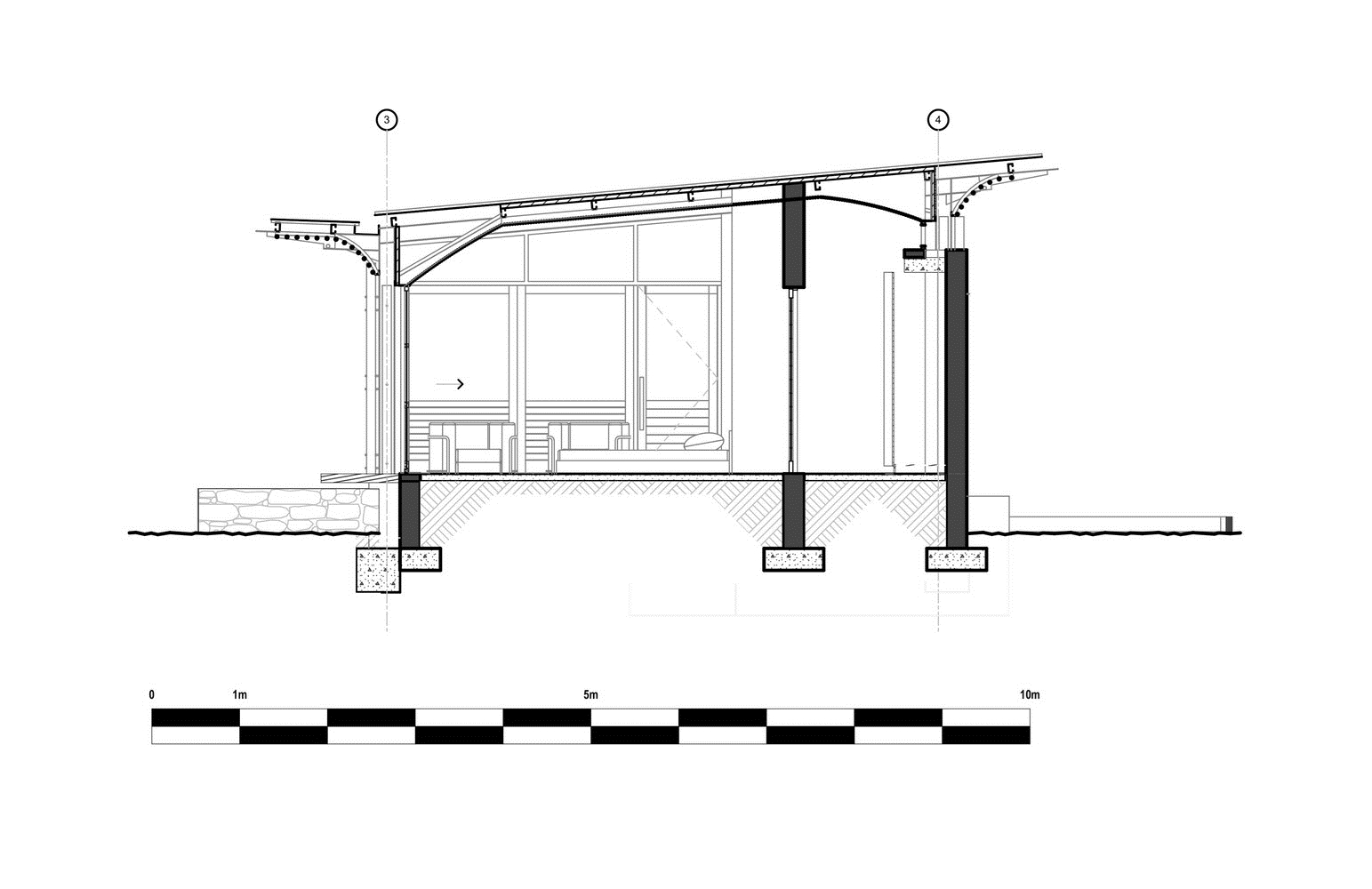

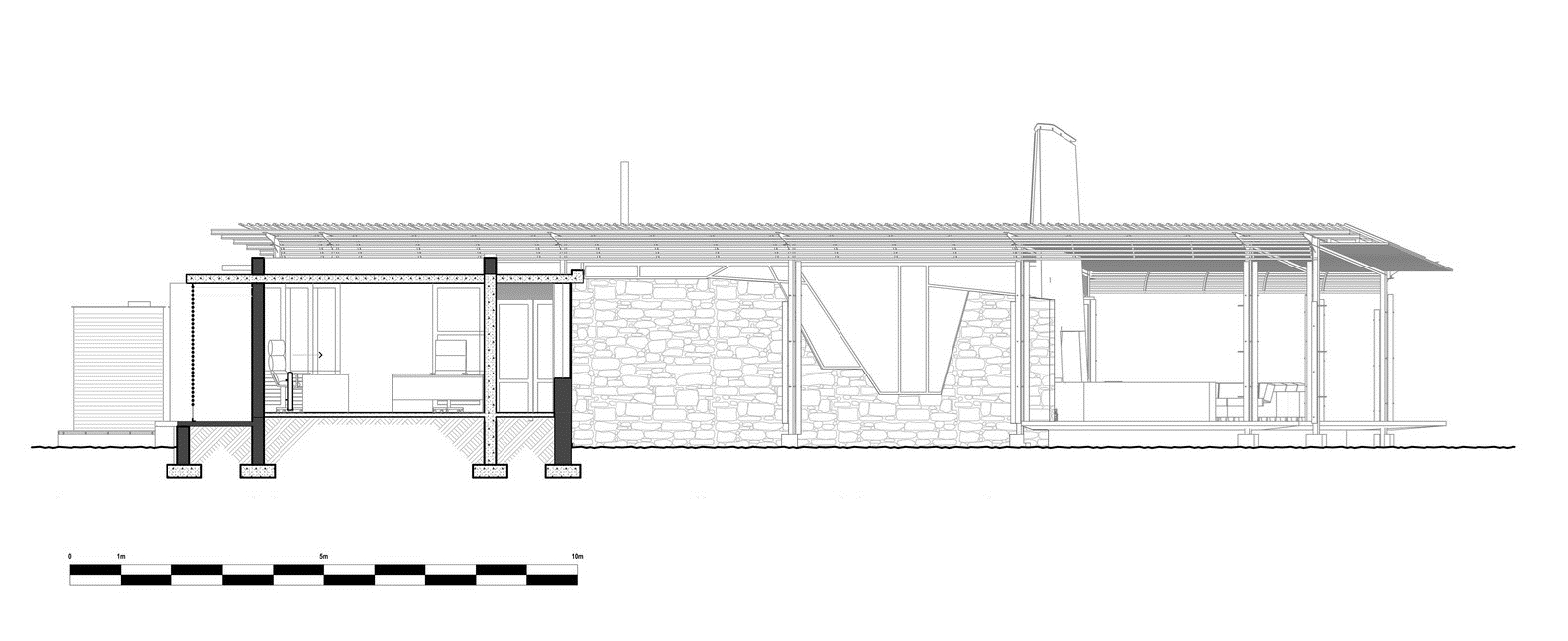

    © House Mouton_Earthworld Architects Section 6

• • •

    © House Mouton_Earthworld Architects Elevation 04

  • •

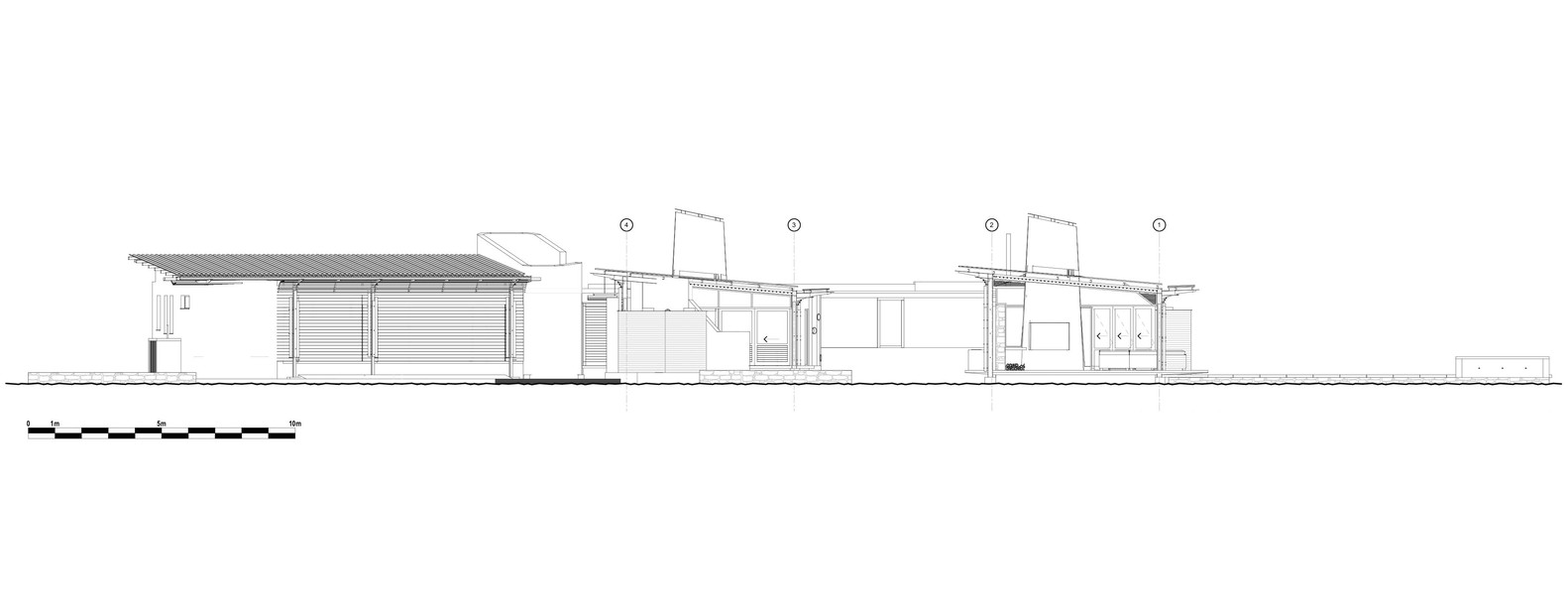

    © House Mouton_Earthworld Architects Section

  • •

    © House Mouton_Earthworld Architects 22

• • •

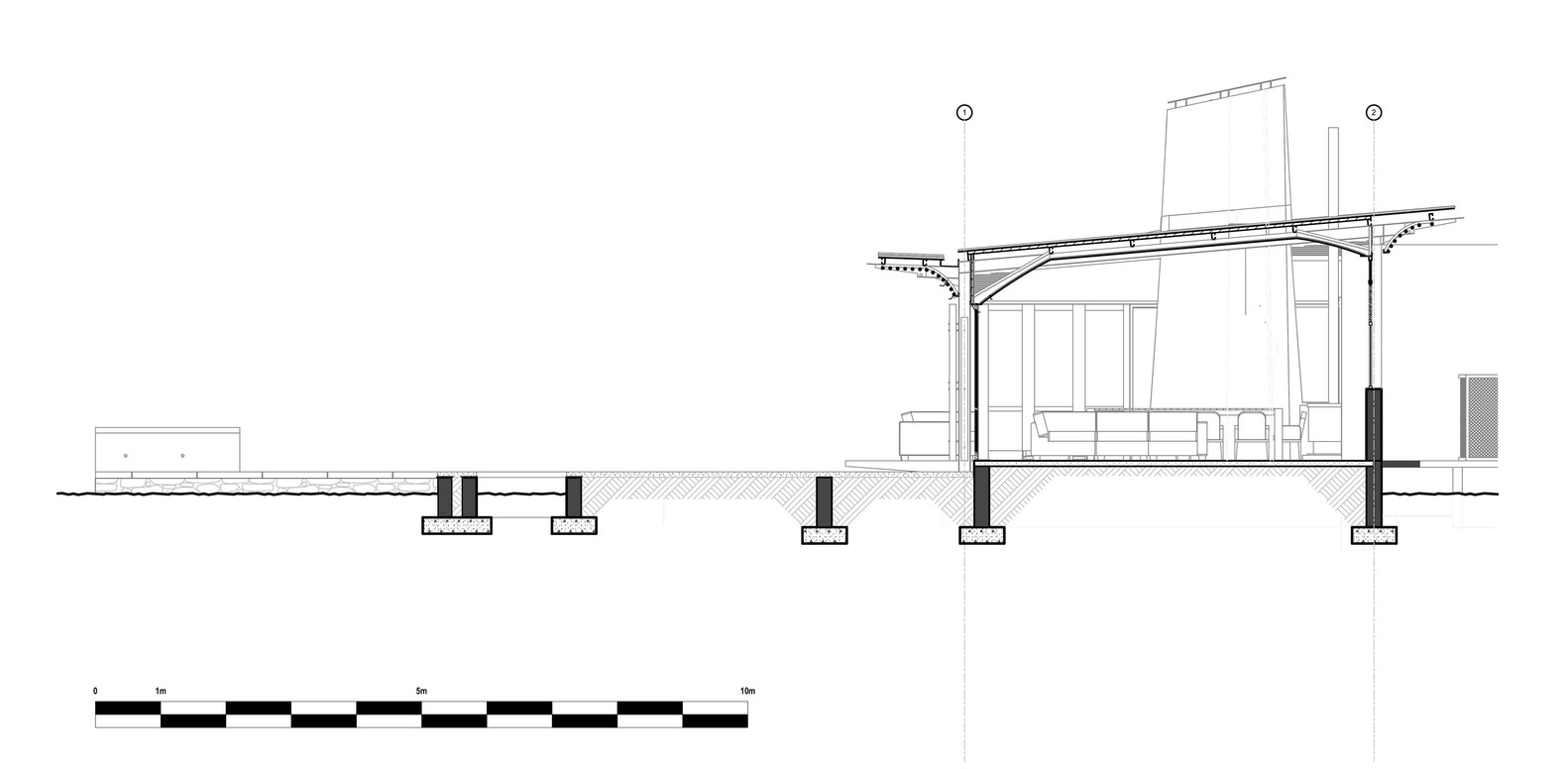

    © House Mouton_Earthworld Architects Section 7

  • •

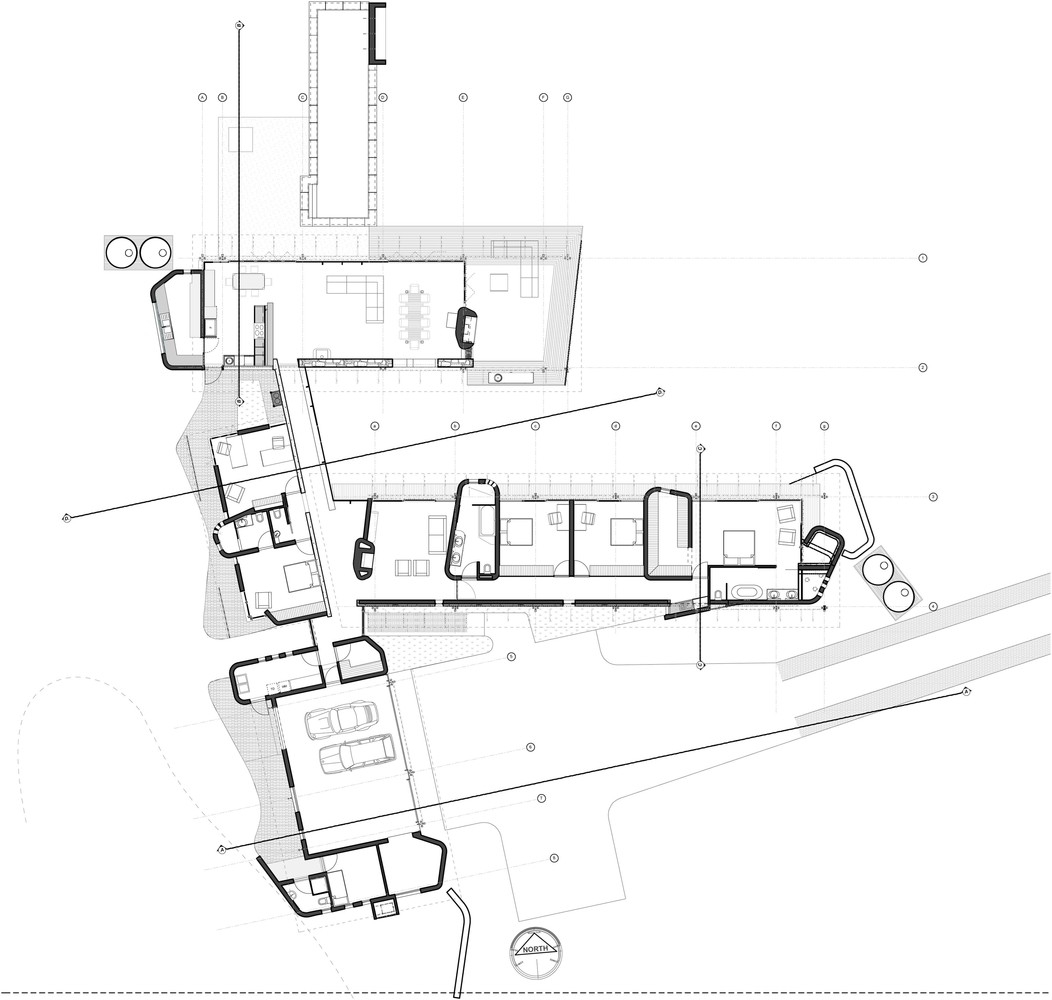

    © House Mouton_Earthworld Architects Plan

  • •

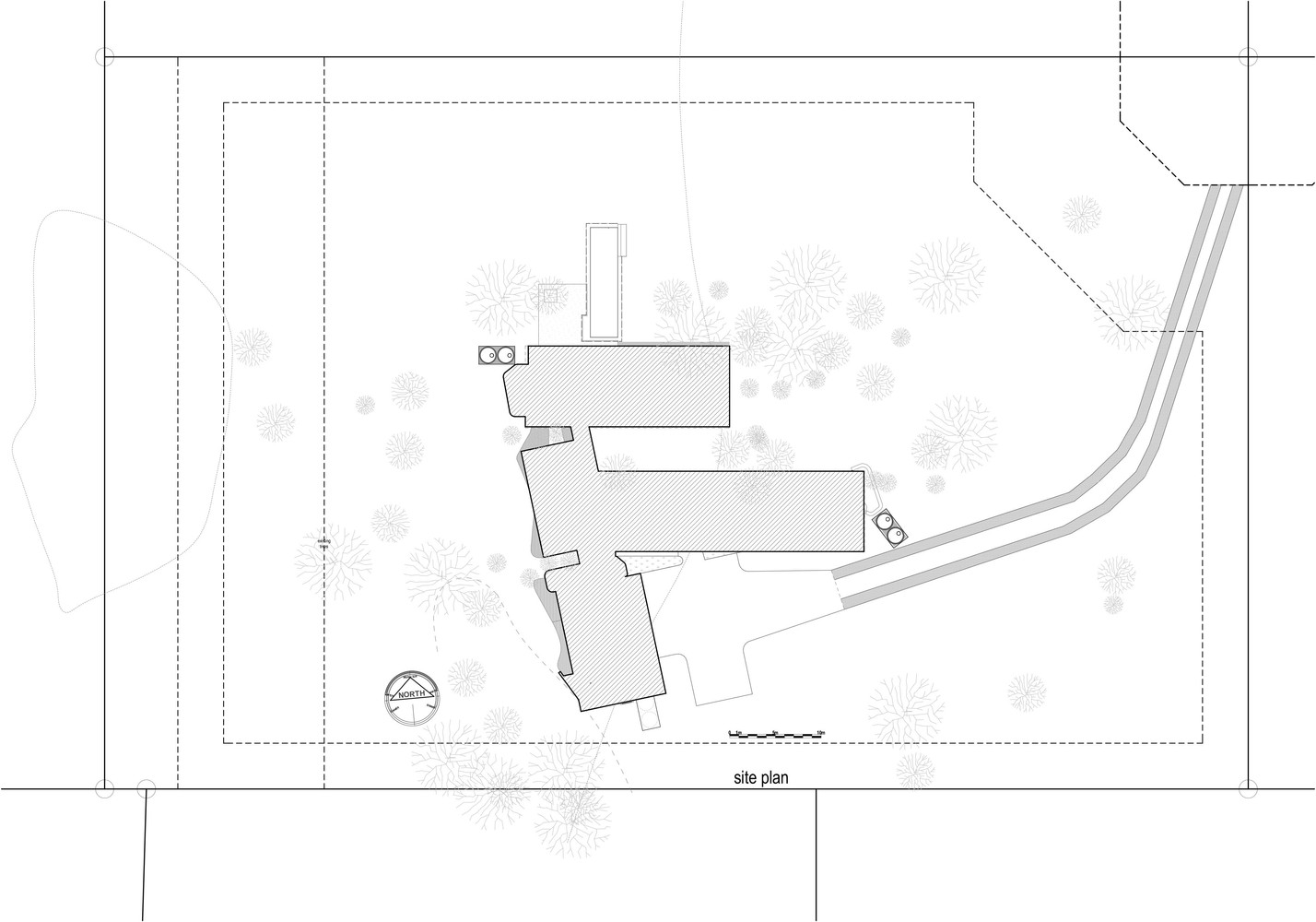

    © House Mouton_Earthworld Architects Site Plan
